Description

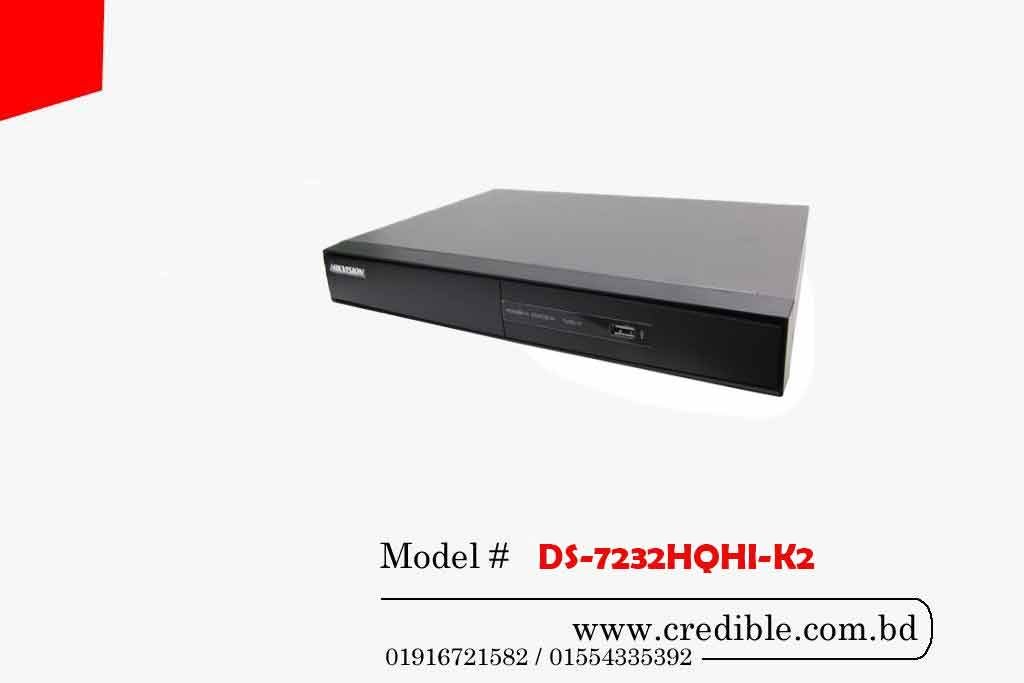

DS-7232HQHI-K2 – Buy Hikvision DVR from Hikvision CC Camera Store in Bangladesh.
Hikvision dealer in Bangladesh is presenting the best CC Camera Brand in BD.
Hikvision DVR DS-7232HQHI-K2 price
Specification:
Video/Audio Input | ||
---|---|---|
Audio Input: | 1-ch | |
Analog and HD-TVI video input: | 24-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
Audio Compression: | G.711u | |
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) |
Video/Audio Output | ||
---|---|---|
CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
HDMI/VGA Output: | 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz | |
Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
Video Bit Rate: | 32 Kbps-6 Mbps | |
Stream Type: | Video/Video&Audio | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
Audio Bit Rate: | 64kbps | |
Dual Stream: | Support | |
Synchronous Playback: | 16-ch |
