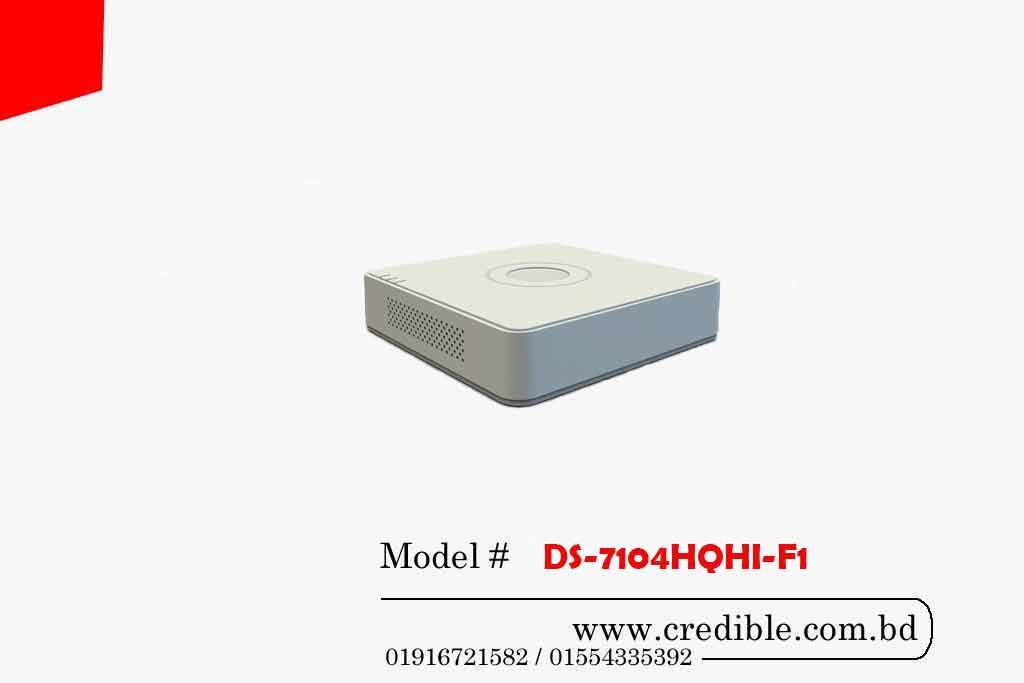

Hikvision DS-7104HQHI-F1

৳ 4,600

* Model: HIKVISION DS-7104HQHI-F1 4-CH
* Interface: 1 HDMI,1 VGA
* Image System: NTSC,PAL
* HDD Support: 1HDD(Upto 6TB)

Brand: Hikvision Camera

Description

DS-7104HQHI-F1 – Buy Hikvision DVR  from Hikvision CC Camera Store in Bangladesh.

Hikvision dealer in Bangladesh is presenting the best CC Camera Brand in BD.



Hikvision DVR DS-7104HQHI-F1 price



Specification:



Name/model DS-7104HQHI-F1/N
Code M75105
Video formats HD-TVI, AHD, HD-CVI, CVBS
Video inputs BNC x 4
Video outputs HDMI, VGA, CVBS
HDMI/VGA resolutions 1080p: 1920×1080
SXGA: 1280×1024
720p: 1280×720
XGA 1024×768
Audio input / output connectors RCA 1 / 1
Alarm inputs / outputs
Alarms and exceptions Motion detection, video loss, camera tampering
Live monitoring 25 fps
Recording options 1080p 12 fps
960×1080 25 fps
720p 25 fps
VGA 25 fps
WD1/4CIF 25 fps
Video bit rate range (single channel) 32 kbps – 4607 kbps
Audio bit rate 64 kbps
HDD capacity & interface 1 x max 6 TB SATA HDD
S.M.A.R.T. monitoring tools YES
NAS/SAN compatibility YES (NAS)
External ports 2x USB 2.0; RJ-45
Secondary stream WD1, 4CIF, CIF, QVGA, QCIF
Network protocols TCP/IP; DHCP; DDNS; PPPoE; email; NTP; SNMP; UPnP
Software ports Server – 8000
HTTP – 80
RTSP – 554
Remote monitoring Internet Explorer; after installing plugins – Firefox, Safari;  smartphones (Android, Windows Mobile)
PTZ protocols No
Archiving USB storage device, remote server
Power input 12 VDC / 1.5 A (dedicated PSU)
Power consumption <8 W (without HDD)
Operating temperature -10°C55°C
Operating humidity 10%…90%
Dimensions ( W x D x H ) 200 x 200 x 45 mm
