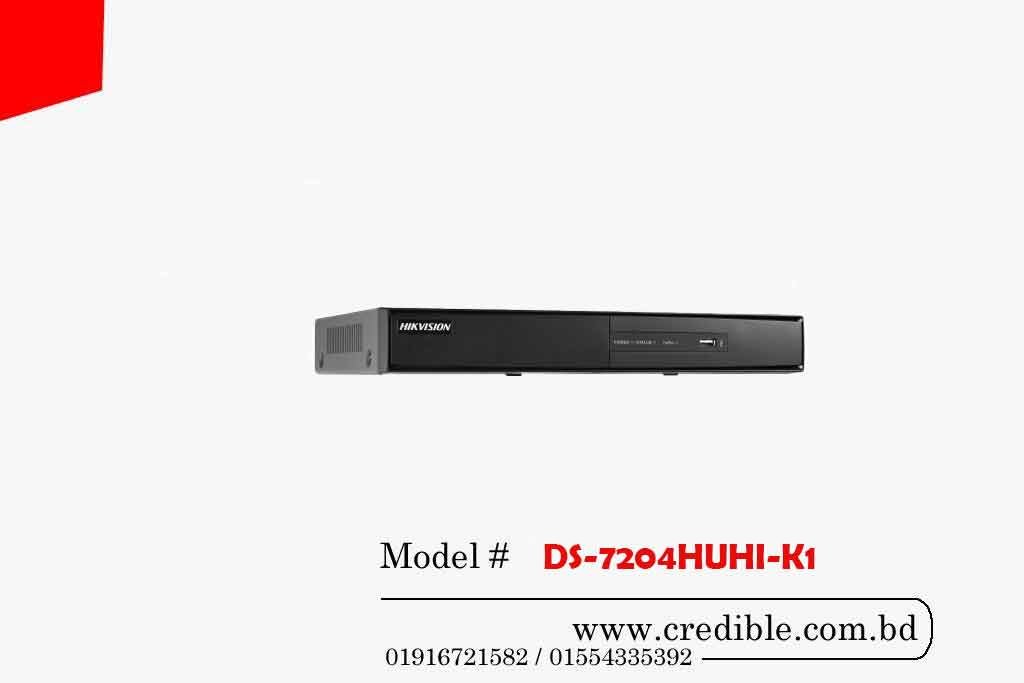

Hikvision DS-7204HUHI-K1

৳ 7,780

* Model: DS-7204HQHI-K1
* H.265 pro+ compression technology
* Encoding ability up to 1080p @ 15 fps
* Interface: 1 HDMI,1 VGA
* 1 SATA interface, 8 TB capacity

Brand: Hikvision Camera

Description

DS-7204HUHI-K1 – Buy Hikvision DVR  from Hikvision CC Camera Store in Bangladesh.

Hikvision dealer in Bangladesh is presenting the best CC Camera Brand in BD.



Hikvision DVR DS-7204HUHI-K1 price



Specification:



Video/Audio Input
Audio Input: 4-ch
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input: 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)



Video/Audio Output
CVBS Output: 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-10 Mbps
Stream Type: Video/Video&Audio
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Synchronous Playback: 4-ch



Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF



Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 8 TB capacity for each disk



External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
Serial Interface: 1; standard RS-485 serial interface, half-duplex



General
Power Supply: 12V DC
Consumption: ≤ 10W(without hard disks)
Working Temperature: -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity: 10% to 90%
Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight: ≤ 1.16 kg (2.6 lb)
