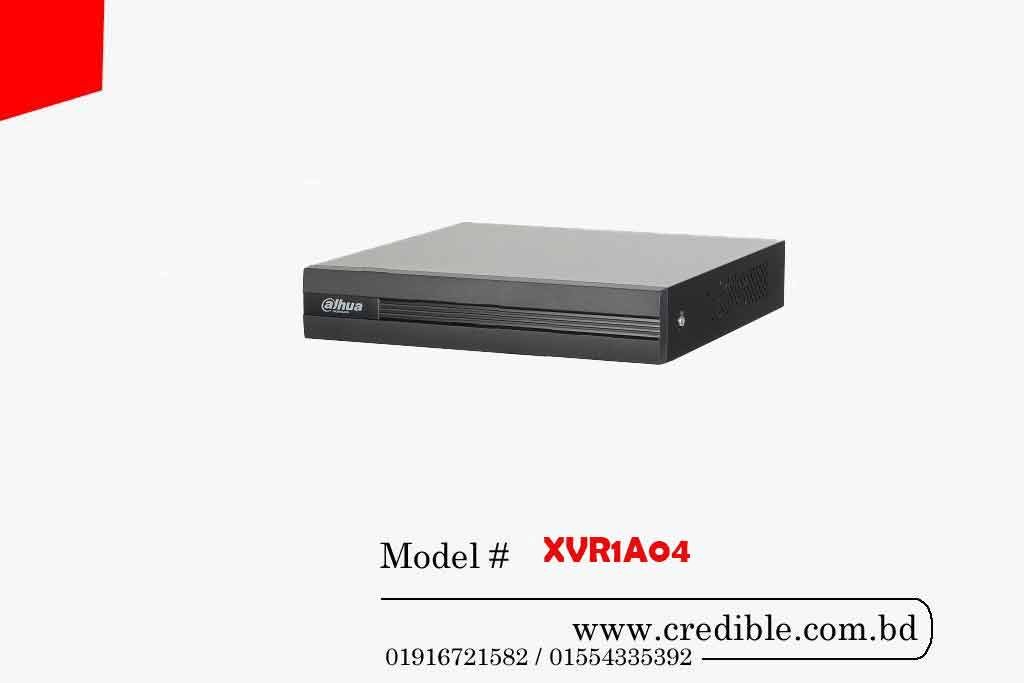

DAHUA XVR1A04

৳ 3,915

* Model: Dahua XVR1A04
* Long transmission distance over coax cable
* H.264 video compression
* Supports 1 SATA HDD, up to 6TB
* Max 5 channels IP camera inputs

Brand: Dahua Camera

Description

XVR1A04 – Buy Dahua XVR  from Dahua CC Camera Store in Bangladesh.

Dahua dealer in Bangladesh is presenting the best CC Camera Brand in BD.



Dahua XVR XVR1A04 price



Specification:



System
Main Processor Embedded Processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 4CH: 4+1, each channel up to 2MP
HDCVI Camera: 1080P@25/30fps, 720P@25/30fps
AHD Camera: 1080P@25/30, 720P@25/30fps
TVI Camera: 1080P@25/30, 720P@25/30fps
CVBS Camera: PAL/NTSC
Two-Way Talk Reuse audio in/out, RCA
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-Screen Display When IP extension mode not enabled:
4CH: 1/4
When IP extension mode enabled:
4CH: 1/4/6
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream- 4CH: All channel- 1080N/ 720P/ 960H/ D1/ HD1/ BCIF/ CIF/ QCIF (1~25/30fps)
Sub steram- 4CH: CIF/QCIF (1~15fps)
Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection And Alarm
Trigger Event Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback And Backup
Sync Playback 4CH: 1/4
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third Party Support
Third Party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
