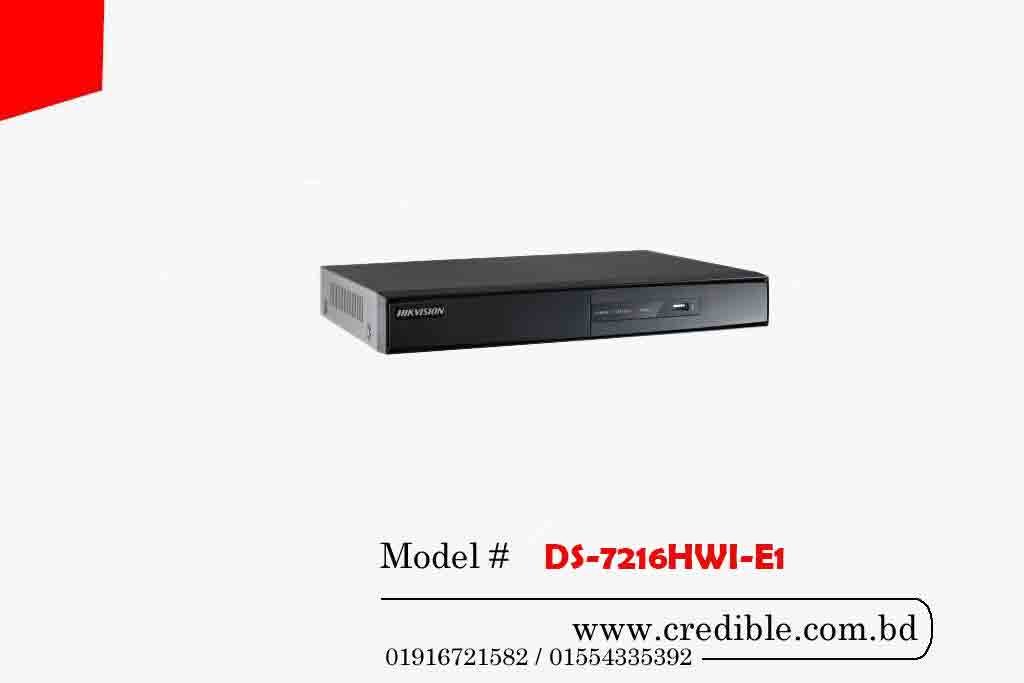

Hikvision DS-7216HWI-E1

৳ 6,705

* Model: HIKVISION DS-7216HWI-E1
* Interface: 1 HDMI,1 VGA
* Image System: NTSC,PAL
* HDD Support: 1HDD

Brand: Hikvision Camera

Description

DS-7216HWI-E1 – Buy Hikvision DVR  from Hikvision CC Camera Store in Bangladesh.

Hikvision dealer in Bangladesh is presenting the best CC Camera Brand in BD.



Hikvision DVR DS-7216HWI-E1 price



Specification:



Additional info

  • H.264 & Dual-stream video compression
  • Full channel@WD1(PAL:960×576, NTSC:960×480) resolution real-time recording
  • Support VCA detection alarm (line crossing detection and intrusion detection)
  • HDMI and VGA output at up to 1920×1080P resolution
  • Up to 16-ch synchronous playback

• H.264 & Dual-stream video compression

Video/Audio Input
Audio Input: | 1-ch
Video Compression: | H.264
Analog Video Input: | 16-ch
PAL/NTSC Adaptive: | Support
IP Video Input: | 2-ch 1080P
Video Input Interface: | BNC (1.0 Vp-p, 75Ω)
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
VGA Output: | 1-ch, resolution:
1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz
CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output: | 1-ch, resolution: 1080P: 1920×1080×60Hz; SXGA: 1280×1024×60Hz; 720P: 1280×720×60Hz;
XGA: 1024×768×60Hz
Recording resolution: | WD1/ 4CIF / 2CIF / CIF / QCIF
Frame Rate: | 25 fps (P) / 30 fps /N

Video Bit Rate: | 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Stream Type: | Video/Video Audio
Audio Output: | 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | WD1/ 4CIF / 2CIF / CIF / QCIF
Synchronous Playback: | 16-ch
Hard Disk Driver
Interface Type: | 2 SATA Interfaces
Capacity: | Up to 4TB capacity for each disk
External Interface
Network Interface: | 1 RJ45 10M/100M adaptive Ethernet Interface
USB Interface: | 2 USB 2.0 Interfaces
Serial Interface: | 1 RS-485 interface

General
Power Supply: | 12 VDC
Consumption: | ≤ 20 W
Working Temperature: | -10 °C ~ +55 °C
Working Humidity: | 10% ~ 90%
Chassis: | 19-inch rack-mounted 1U chassis
Dimensions: | 380 × 290 × 48 mm mm
Weight: | ≤ 4 kg (without hard disk or DVD-R/W)
