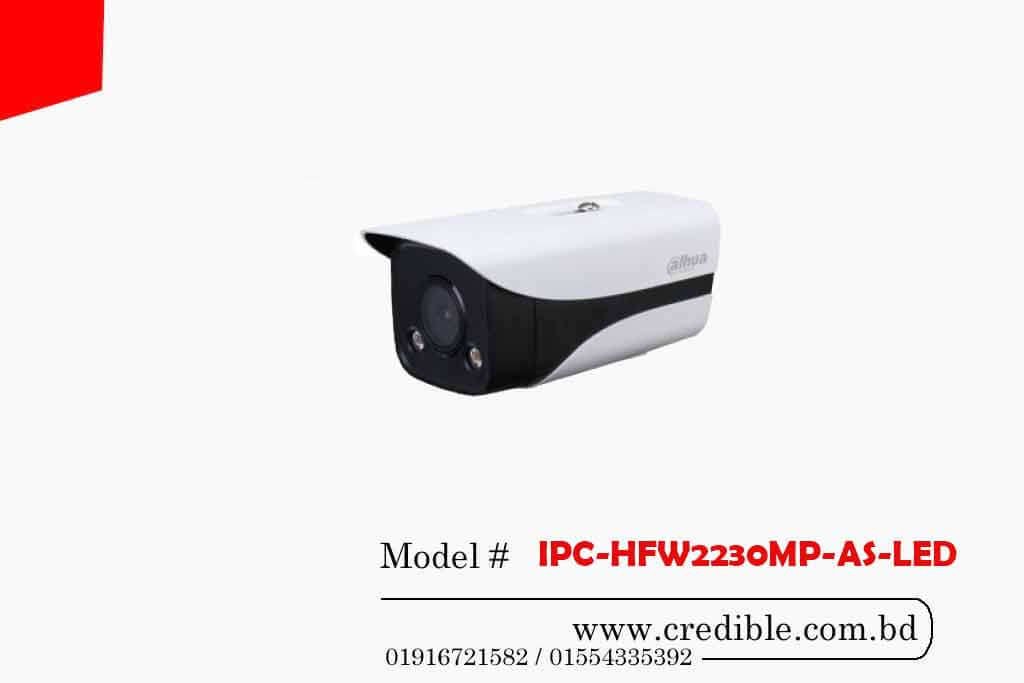

DAHUA IPC-HFW2230MP-AS-LED

৳ 7,965

* Model: IPC-HFW2230MP-AS-LED
* 2MP, 1/2.8” CMOS image sensor
* Outputs (1920 × 1080)@25/30 fps
* Built-in LEDs, max LED distance: 25 m
* 12V DC/PoE power support

Brand: Dahua Camera

Description

IPC-HFW2230MP-AS-LED – Buy Dahua CCTV from Dahua CC Camera Store in Bangladesh.

Dahua dealer in Bangladesh is presenting the best CC Camera Brand in BD.



IPC-HFW2230MP-AS-LED price



Specification:



Camera
Image Sensor 1/2.8” 2Megapixel progressive CMOS
Effective Pixels 1920 (H) × 1080 (V)
ROM 16 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.002 Lux@F1.6
LED Distance 25 m (82.0 ft)
LED On/Off Control Auto/Manual
LEDs Number 2
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm

6 mm

8 mm

Max. Aperture 3.6 mm: F1.6

6 mm: F1.6

8 mm: F1.6

Field of View 3.6 mm: Pan 87° × Tilt 46° × Diagonal 104°

6 mm: Pan 53° × Tilt 30° × Diagonal 60°

8 mm: Pan 41° × Tilt 23° × Diagonal 47°

Iris Type Fixed
Close Focus Distance 3.6mm: 1.2 m (3.9 ft)

6mm: 2.5 m (8.2 ft)

8mm: 4 m (13.1 ft)

DORI Distance Lens Detect Observe Recognize Identify
3.6 mm 55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

6 mm 82.8 m

(271.7 ft)

33.1 m

(108.6 ft)

16.6 m

(54.4 ft)

8.3 m

(27.2 ft)

8 mm 110.3 m

(361.9 ft)

44.1 m

(144.7 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
