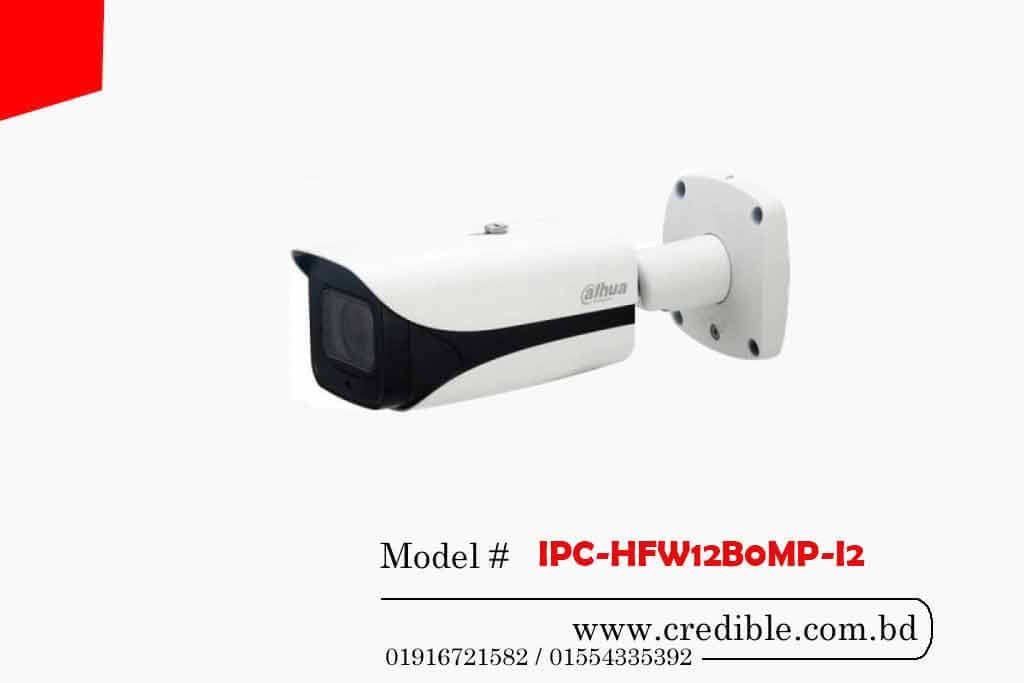

DAHUA IPC-HFW12B0MP-I2

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Max. Resolution

1920 (H) ×1080 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.002 Lux@F1.6 (Color, 30IRE)

0.0002 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

80 m (262.5 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm; 6 mm; 8 mm; 12 mm

Max. Aperture

3.6 mm, 6 mm, 8 mm: F1.6
12 mm: F2.0

Field of View

3.6 mm: Horizontal: 87°; vertical: 46°; diagonal: 104°
6 mm: Horizontal: 54°; vertical: 29°; diagonal: 63°
8 mm: Horizontal: 41°; vertical: 22°; diagonal: 47°
12 mm: Horizontal: 26°; vertical: 14°; diagonal: 30°

Iris Type

Fixed

Close Focus Distance

3.6 mm: 1.2 m (3.9 ft)
6 mm: 2.5 m (8.2 ft)
8 mm: 4 m (13.1 ft)
12 mm: 8.6 m (28.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

6mm

82.8 m

(271.7 ft)

33.1 m

(108.6 ft)

16.6 m

(54.5 ft)

8.3 m

(27.2 ft)

8 mm

110.3 m (361.9 ft)

44.1 m

(144.7 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

12 mm

172.4 m (565.6 ft)

69.0 m

(226.4 ft)

34.5 m

(116.1 ft)

17.3 m

(56.8 ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (1920 × 1080@1–25/30 fps)
sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream(1280 × 720@1–25/30 fps)
