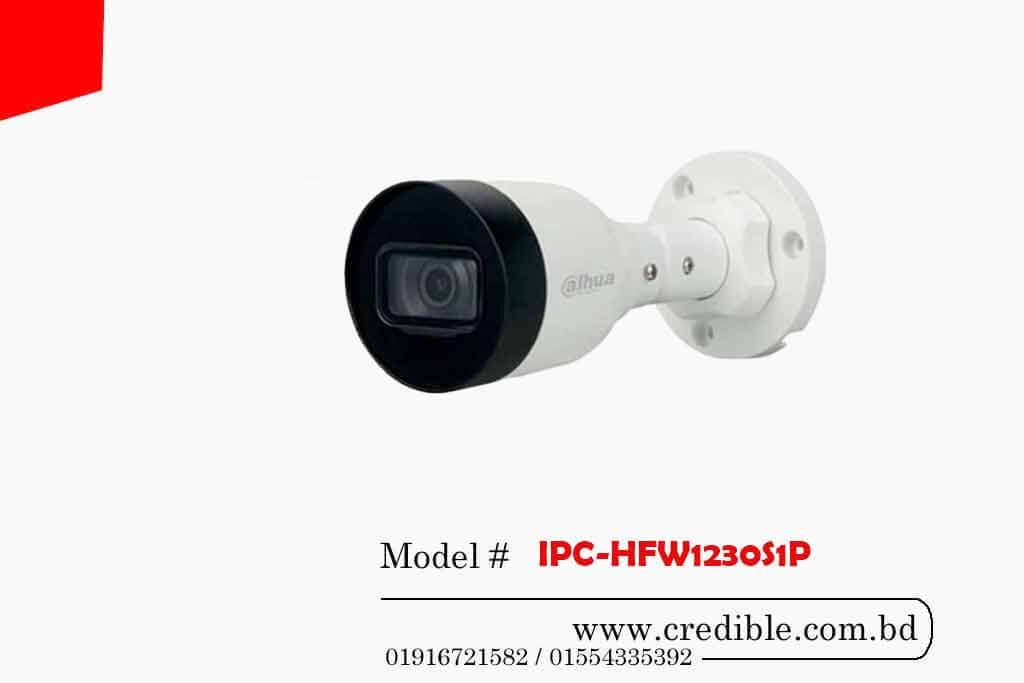

DAHUA IPC-HFW1230S1P

৳ 4,200

* Model: IPC-HFW1230S1P
* ROI, SMART H.264/ H.265,Flexible coding,
* 2MP, 1/2.7” CMOS Image Sensor
* Outputs max. (1920×1080) @25/30 fps
* IR distance: 30M (Rotation Mode)

Brand: Dahua Camera

Description

IPC-HFW1230S1P – Buy Dahua CCTV from Dahua CC Camera Store in Bangladesh.

Dahua dealer in Bangladesh is presenting the best CC Camera Brand in BD.



IPC-HFW1230S1P price



Specification:



Camera
Image Sensor 1/2.7” 2Megapixel progresive CMOS
Effective Pixels 1920(H) x1080(V)
RAM/ROM 64MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.09Lux/F2.0(Color,1/3s,30IRE)

0.5Lux/F2.0(Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:115°/87.5°, V:60°/47°
Focus Control Fixed
Close Focus Distance 0.6m(1.97ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft)
3.6 mm 53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft)
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)//VGA(640×480)/ CIF(352×288/352×240)

Frame Rate Main Stream: 1080P (1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H265:12K~5632K

H.264:32K ~8192K

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;

NTP;Multicas; ICMP; IGMP

Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage N/A
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,DMSS
Smart Phone IOS, Android
