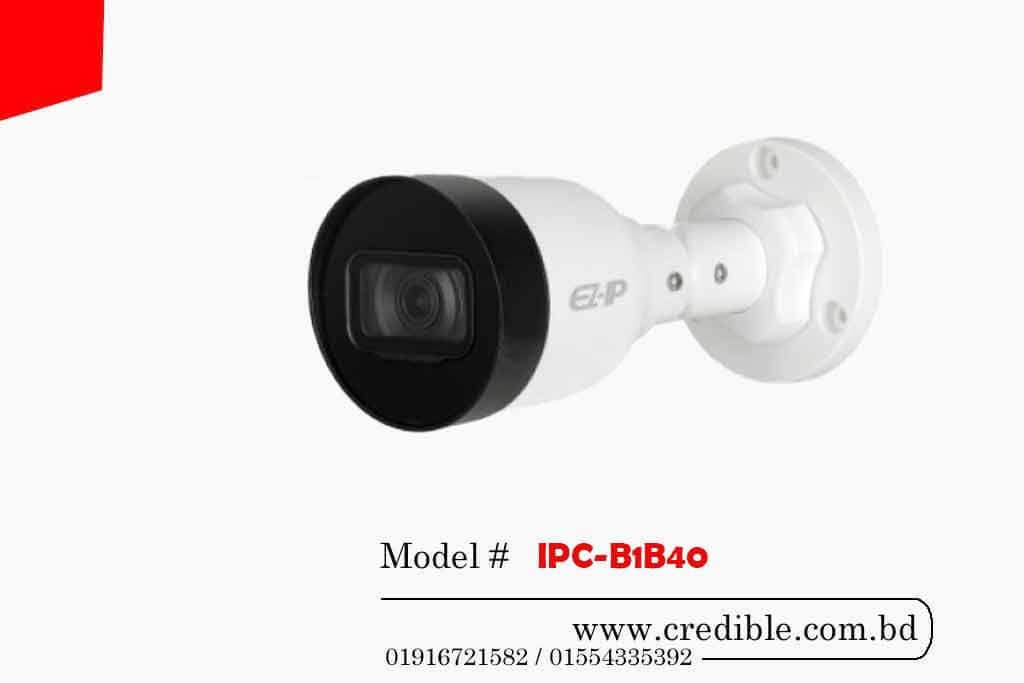

DAHUA IPC-B1B40

৳ 5,940

* Model: Dahua IPC-B1B40
* Sensor:1/3” 4MP progresive CMOS
* Lens:2.8 mm
* IR Range: 30m
* IP67, PoE

Brand: Dahua Camera

Description

IPC-B1B40 – Buy Dahua CCTV from Dahua CC Camera Store in Bangladesh.

Dahua dealer in Bangladesh is presenting the best CC Camera Brand in BD.



IPC-B1B40 price



Specification:



Camera
Image Sensor 1/3” 4Megapixel progresive CMOS
Effective Pixels 2560(H)x1440(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.09Lux/F2.0( Color,1/3s,30IRE)

0.5Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:101°/80°, V:54°/44°
Focus Control Fixed
Close Focus Distance 0.8m(2.63ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 56m(184ft) 22.4m(73.5ft) 11.2m(36.7ft) 5.6m(18.4ft)
3.6 mm 80m(262.5ft) 32m(105ft) 16m(52.5ft) 8m(26.3ft)
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger Motion detection, Video tampering , Network disconnection , Scene change, IP address conflict, Illegal Access,Storage anomaly
Video
Compression H.265/H.264/H.264B/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32K~6144K

H.265: 12K~ 6144K

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH

Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)

Local PC for instant recording

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,DMSS
Smart Phone IOS, Android
